Popis produktu

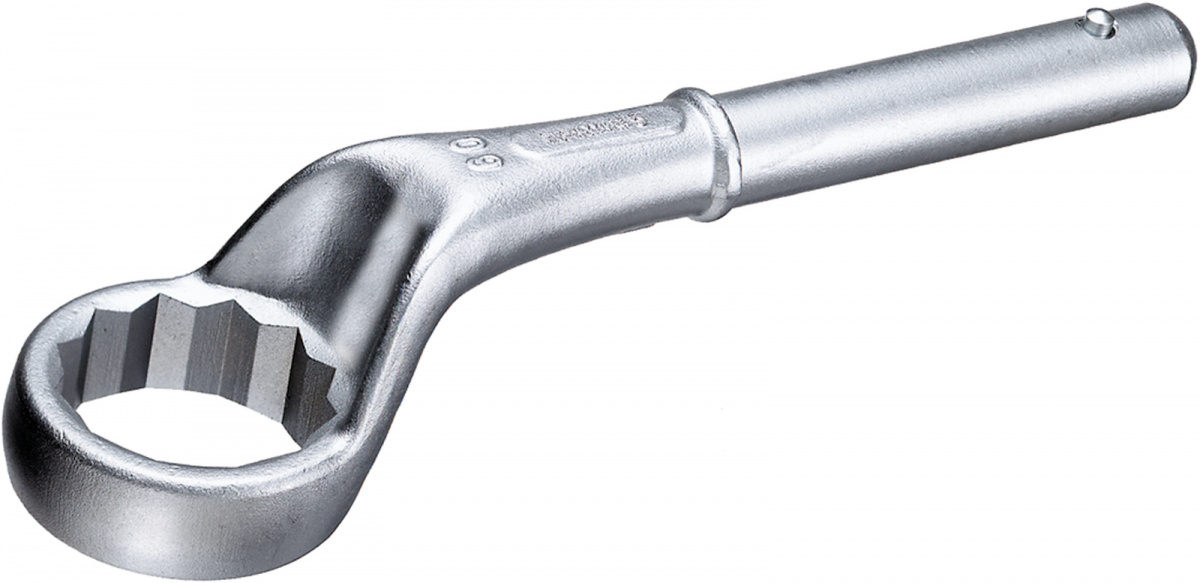

Taný očkový klíč bez rukojeti, chromem legovaná ocel.
Produktové číslo: 5 36
Výrobce: Stahlwille
Specifikace
Varianty

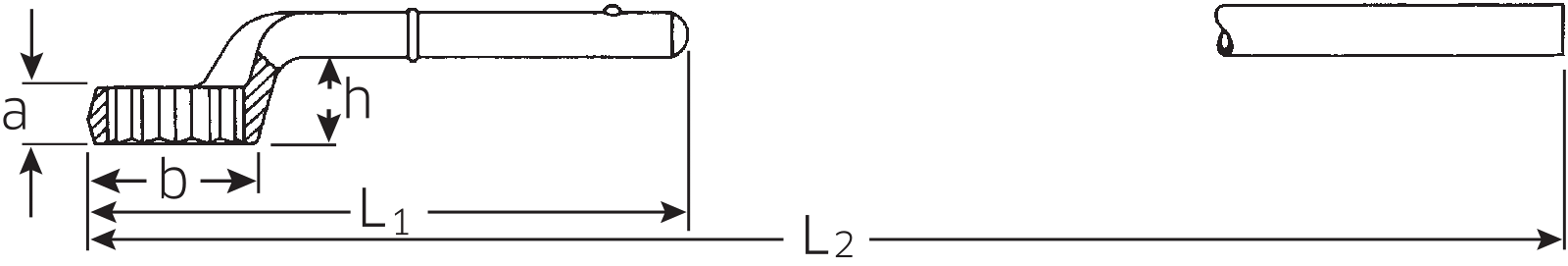

| Číslo | Skladem | A mm |
L1 mm |
L2 mm |
b mm |
a mm |
h mm |
Rukoje | S |
R g |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 24 | 0 | 24 | 180 | 555 | 38 | 17 | 29,5 | 5 1/2 -1 | 1 | 381 |
|
| 5 27 | 0 | 27 | 190 | 560 | 41 | 17 | 31,5 | 1 | 1 | 421 |
|
| 5 30 | 0 | 30 | 200 | 565 | 47 | 18 | 33,5 | 1 | 1 | 525 |
|
| 532 | 0 | 32 | 235 | 730 | 49 | 18 | 34 | 2 | 1 | 712 |
|
| 5 36 | 0 | 36 | 245 | 735 | 54 | 20 | 35,5 | 2 | 1 | 816 |
|
| 5 38 | 0 | 38 | 250 | 740 | 56 | 21 | 37,5 | 2 | 1 | 810 |
|
| 5 41 | 0 | 41 | 265 | 750 | 62 | 22 | 39,5 | 2 | 1 | 910 |
|
| 5 42 | 0 | 42 | 265 | 750 | 62 | 22 | 39,5 | 2 | 1 | 919 |
|
| 5 46 | 0 | 46 | 280 | 910 | 69 | 23 | 40 | 3 | 1 | 1192 |
|
| 5 50 | 0 | 50 | 290 | 920 | 76 | 25,5 | 42,5 | 3 | 1 | 1426 |
|
| 555 | 0 | 55 | 300 | 925 | 81 | 28 | 45,5 | 3 | 1 | 1541 |
|
| 5 60 | 0 | 60 | 345 | 1050 | 90 | 30,5 | 49 | 4 | 1 | 2260 |
|
| 5 65 | 0 | 65 | 355 | 1060 | 98 | 33 | 53 | 4 | 1 | 2603 |
|
| 5 70 | 0 | 70 | 365 | 1065 | 105 | 35,5 | 55 | 4 | 1 | 2882 |
|
| 5 75 | 0 | 75 | 375 | 1070 | 110 | 38 | 57,6 | 4 | 1 | 3058 |
|
| 5 80 | 0 | 80 | 385 | 1075 | 125 | 40,5 | 59 | 4 | 1 | 3889 |
|
| 5 85 | 0 | 85 | 385 | 1075 | 125 | 40,5 | 59 | 4 | 1 | 3648 |
|
| 5 90 | 0 | 90 | 410 | 1100 | 140 | 45 | 63 | 4 | 1 | 5238 |
|
| 5 95 | 0 | 95 | 410 | 1100 | 140 | 45 | 63 | 4 | 1 | 4630 |
|
| 5 100 | 0 | 100 | 412 | 1100 | 143 | 45 | 63 | 4 | 1 | 4895 |
|
