Popis produktu

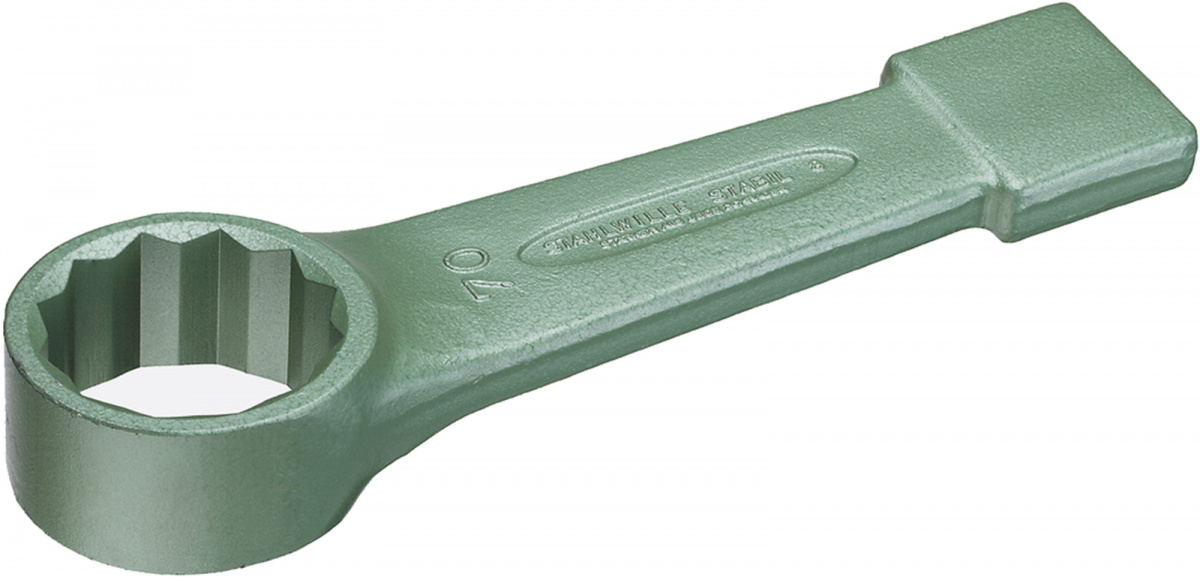

Úderový očkový klíč StahlwilleSTABIL® chromem legovaná ocel, lakovaná na zeleno.
Produktové číslo: 8 32
Výrobce: Stahlwille
Specifikace
Varianty

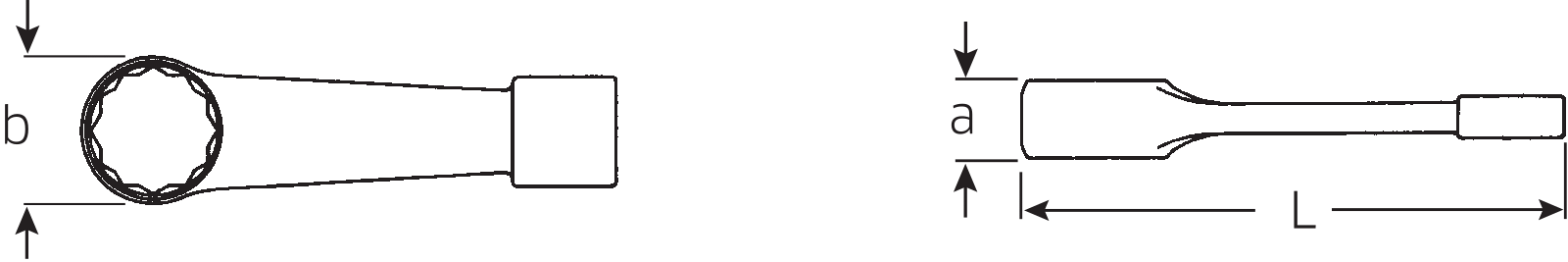

| Číslo | Skladem | A mm |
L mm |
b mm |
a mm |
S |
R g |
|
|---|---|---|---|---|---|---|---|---|
| 8 32 | 0 | 32 | 195 | 47 | 24 | 1 | 661 |
|
| 8 36 | 0 | 36 | 195 | 52,4 | 26 | 1 | 684 |
|
| 841 | 0 | 41 | 200 | 59 | 29 | 1 | 896 |
|
| 8 46 | 0 | 46 | 250 | 65 | 32 | 1 | 1218 |
|
| 8 50 | 0 | 50 | 280 | 70 | 35 | 1 | 1555 |
|
| 8 55 | 0 | 55 | 300 | 76 | 38 | 1 | 2087 |
|
| 8 60 | 0 | 60 | 300 | 82,5 | 42 | 1 | 2394 |
|
| 8 65 | 0 | 65 | 325 | 90,5 | 45 | 1 | 3209 |
|
| 8 70 | 0 | 70 | 355 | 97 | 48 | 1 | 3649 |
|
| 8 75 | 0 | 75 | 360 | 103,5 | 51 | 1 | 4428 |
|
| 8 80 | 0 | 80 | 440 | 110 | 57 | 1 | 5895 |
|
| 8 85 | 0 | 85 | 440 | 117 | 57 | 1 | 6033 |
|
| 8 90 | 0 | 90 | 445 | 124 | 60 | 1 | 6885 |
|
| 8 95 | 0 | 95 | 450 | 131 | 67 | 1 | 7875 |
|
| 8 100 | 0 | 100 | 455 | 137 | 72 | 1 | 10224 |
|
| 8 105 | 0 | 105 | 460 | 146 | 73 | 1 | 10202 |
|
| 8 110 | 0 | 110 | 500 | 156 | 82 | 1 | 14492 |
|
| 8 115 | 0 | 115 | 505 | 162 | 82 | 1 | 14376 |
|
| 8 120 | 0 | 120 | 510 | 174 | 82 | 1 | 15308 |
|
