Popis produktu

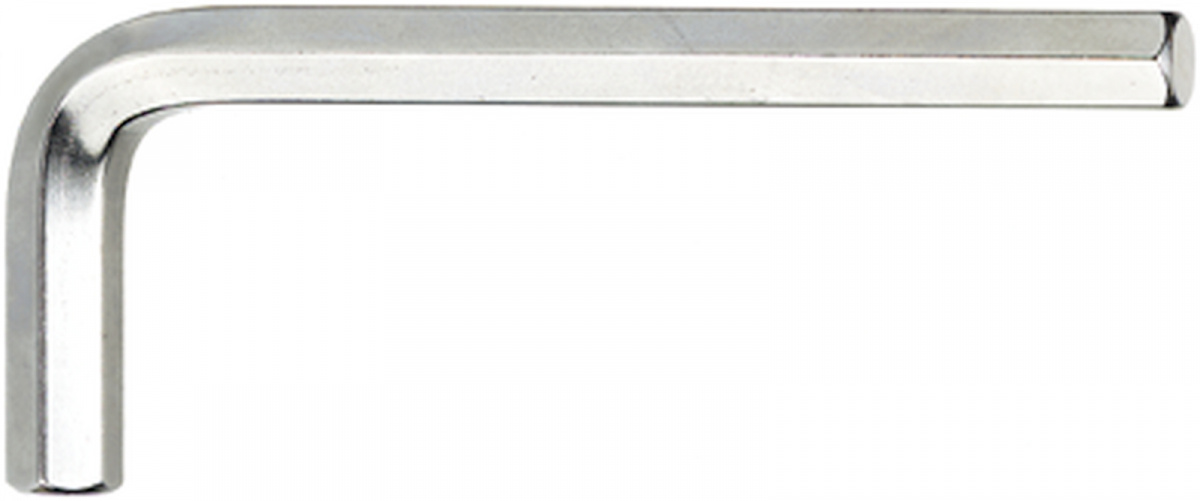

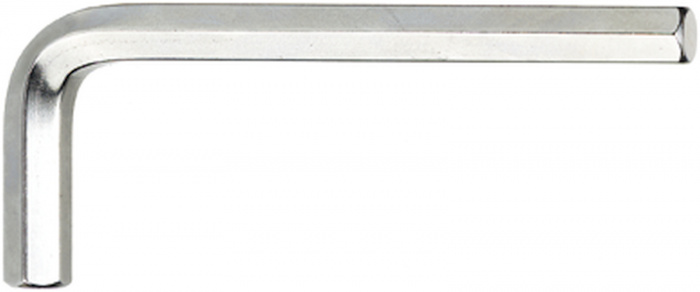

Úhlový šroubovák, pravoúhlý DIN ISO 2936 (metrický), pro šrouby s vnitřním šestihranem, chrom-vanad, poniklovaný (veliskoti: 0,7; 0,9; 1,3 mm černěné).
Produktové číslo: 10760 CV 1,3MM 0,050"
Výrobce: Stahlwille
Specifikace
Varianty

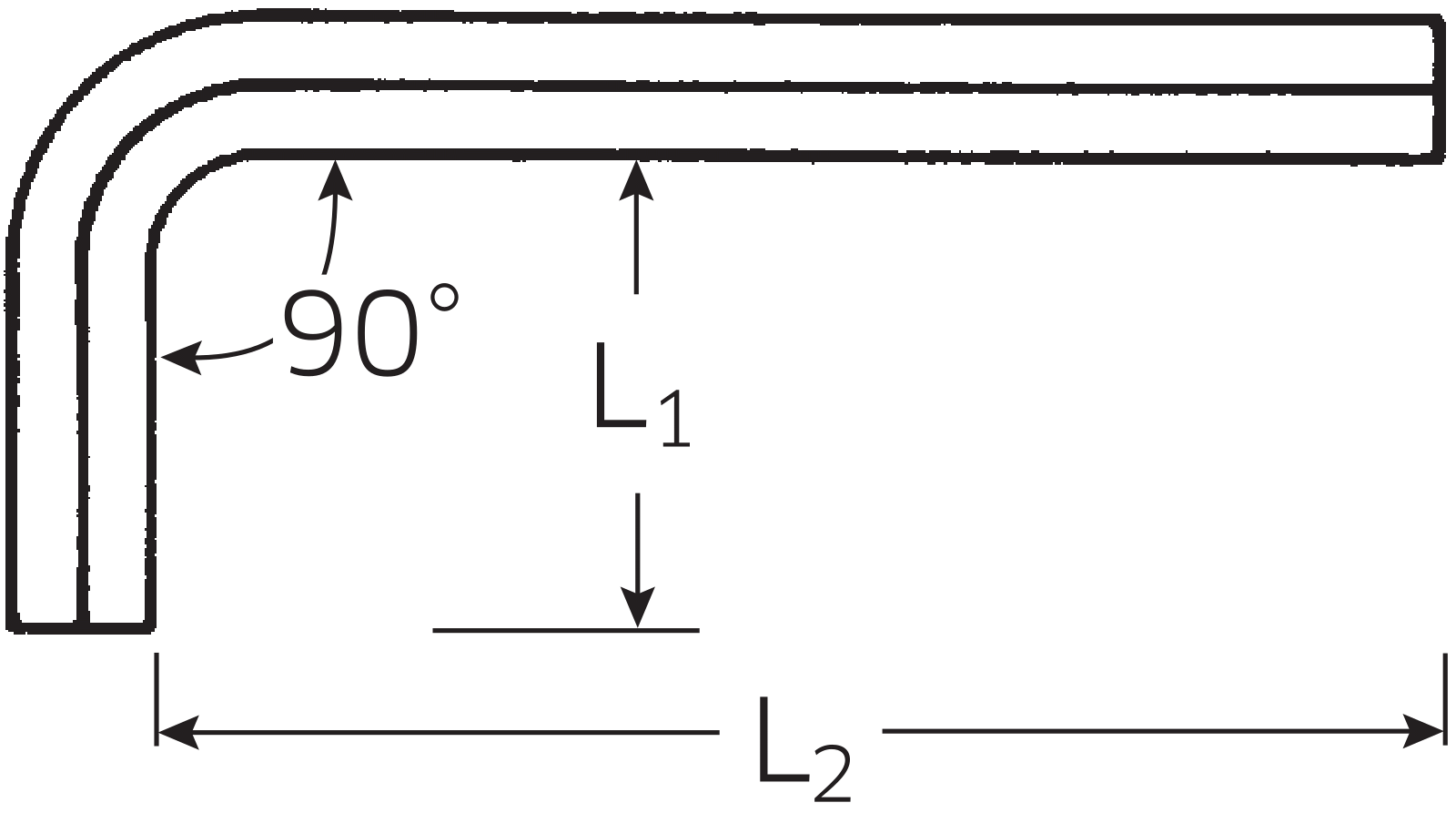

| Číslo | Skladem | B mm |
L1 mm |
L2 mm |
R g |
S |
|
|---|---|---|---|---|---|---|---|
| 10760 CV 0,7MM 0,028" | 0 | 0,7 | 8 | 32 | 1 | 10 |
|
| 10760 CV 0,9MM 0,035" | 0 | 0,9 | 10 | 32 | 1 | 10 |
|
| 10760 CV 1,3MM 0,050" | 0 | 1,3 | 12 | 40 | 1 | 10 |
|
| 10760 ACV 3/64 | 0 | - | 14 | 45 | 1 | 10 |
|
| 10760 ACV 1/16 | 0 | - | 15 | 45 | 1 | 10 |
|
| 10760 ACV 5/64 | 0 | - | 16 | 50 | 2 | 10 |
|
| 10760 ACV 3/32 | 0 | - | 17 | 51 | 3 | 10 |
|
| 10760 ACV 7/64 | 0 | - | 20 | 54 | 4 | 10 |
|
| 10760 ACV 1/8 | 0 | - | 22 | 57 | 5 | 10 |
|
| 10760 ACV 9/64 | 0 | - | 23 | 63 | 7 | 10 |
|
| 10760 ACV 5/32 | 0 | - | 25 | 65 | 10 | 10 |
|
| 10760 ACV 3/16 | 0 | - | 29 | 70 | 15 | 10 |
|
| 10760 ACV 7/32 | 0 | - | 32 | 80 | 23 | 10 |
|
| 10760 ACV 1/4 | 0 | - | 32 | 87 | 32 | 10 |
|
| 10760 ACV 9/32 | 0 | - | 35 | 95 | 45 | 10 |
|
| 10760 ACV 5/16 | 0 | - | 40 | 98 | 59 | 10 |
|
| 10760 ACV 11/32 | 0 | - | 41 | 105 | 75 | 10 |
|
| 10760 ACV 3/8 | 0 | - | 45 | 110 | 95 | 10 |
|
| 10760 ACV 7/16 | 0 | - | 48 | 124 | 143 | 10 |
|
| 10760 ACV 1/2 | 0 | - | 50 | 133 | 201 | 5 |
|
| 10760 ACV 9/16 | 0 | - | 57 | 152 | 292 | 5 |
|
| 10760 ACV 5/8 | 0 | - | 59 | 160 | 380 | 5 |
|
| 10760 ACV 3/4 | 0 | - | 70 | 180 | 605 | 5 |
|
| 10760 ACV 7/8 | 0 | - | 80 | 200 | 945 | 1 |
|
