Popis produktu

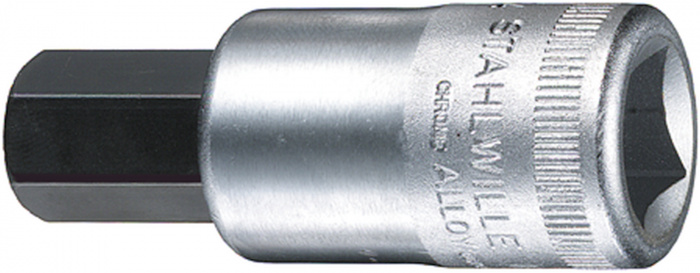

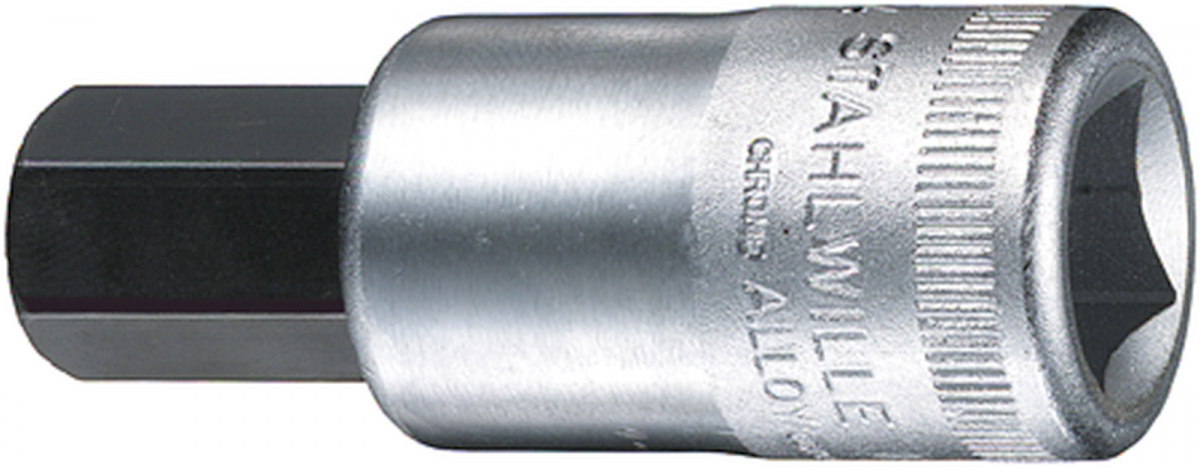

Hlavice IHNEX pro rouby s vnitřním estihranem, DIN 7422, chromem legovaná ocel, chrómovaná.
Produktové číslo: 54A 1/2
Výrobce: Stahlwille
Specifikace
Varianty

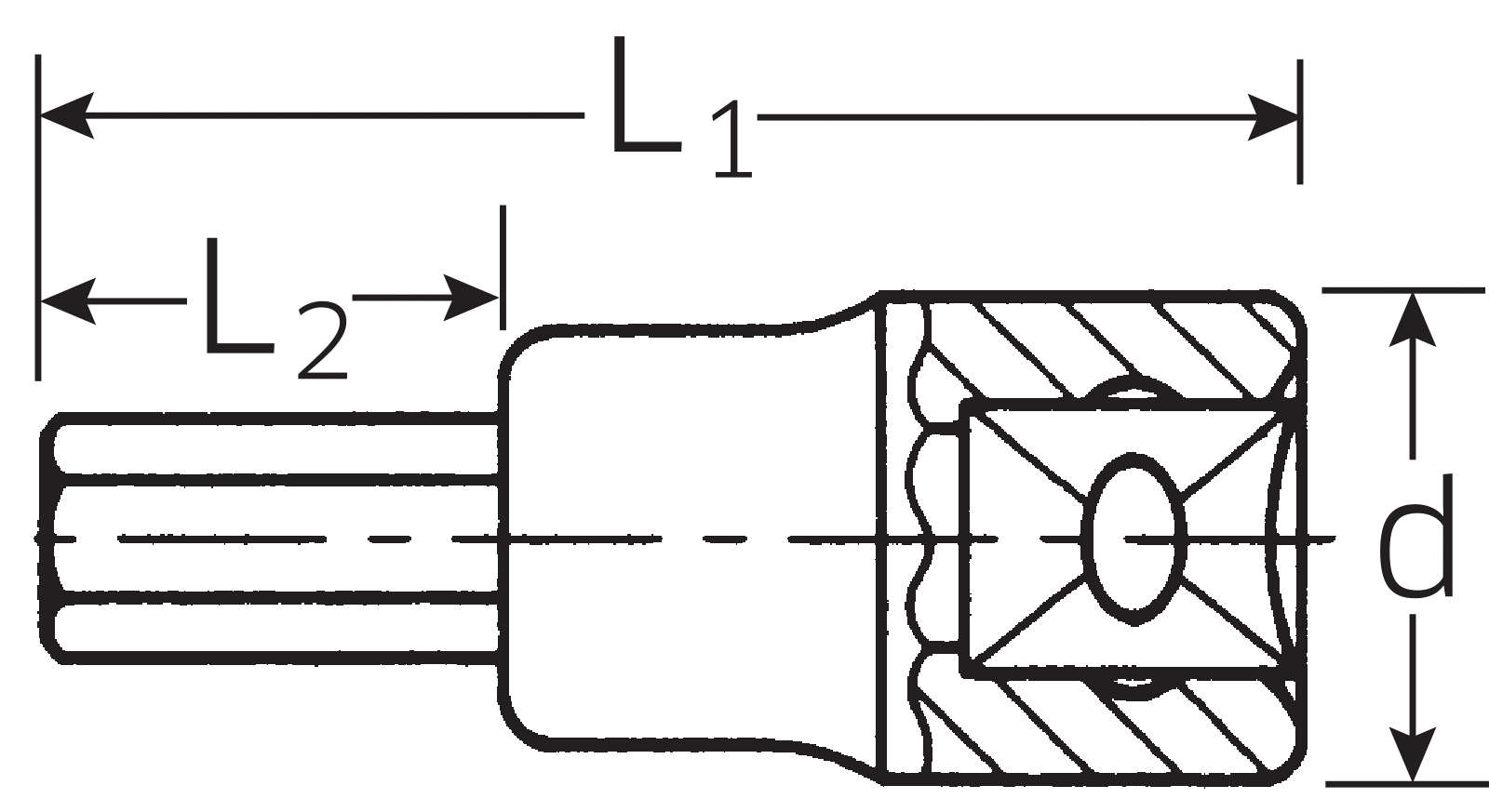

| Číslo | Skladem | B " |
L1 mm |
L2 mm |
d mm |
S |
R g |
|
|---|---|---|---|---|---|---|---|---|
| 54A 7/32 | 0 | 7/32 | 60 | 22 | 22,7 | 5 | 70 |
|
| 54A 1/4 | 0 | 1/4 | 60 | 22 | 22,7 | 5 | 75 |
|
| 54A 5/16 | 0 | 5/16 | 60 | 22 | 22,7 | 5 | 81 |
|
| 54A 3/8 | 0 | 3/8 | 60 | 22 | 22,7 | 5 | 97 |
|
| 54A 7/16 | 0 | 7/16 | 60 | 22 | 22,7 | 5 | 103 |
|
| 54A 1/2 | 0 | 1/2 | 60 | 20 | 23,7 | 5 | 125 |
|
| 54A 9/16 | 0 | 9/16 | 60 | 20 | 23,7 | 5 | 137 |
|
| 54A 5/8 | 0 | 5/8 | 60 | 20 | 27,5 | 5 | 169 |
|
| 54A 3/4 | 0 | 3/4 | 60 | 20 | 31 | 2 | 244 |
|
