Popis produktu

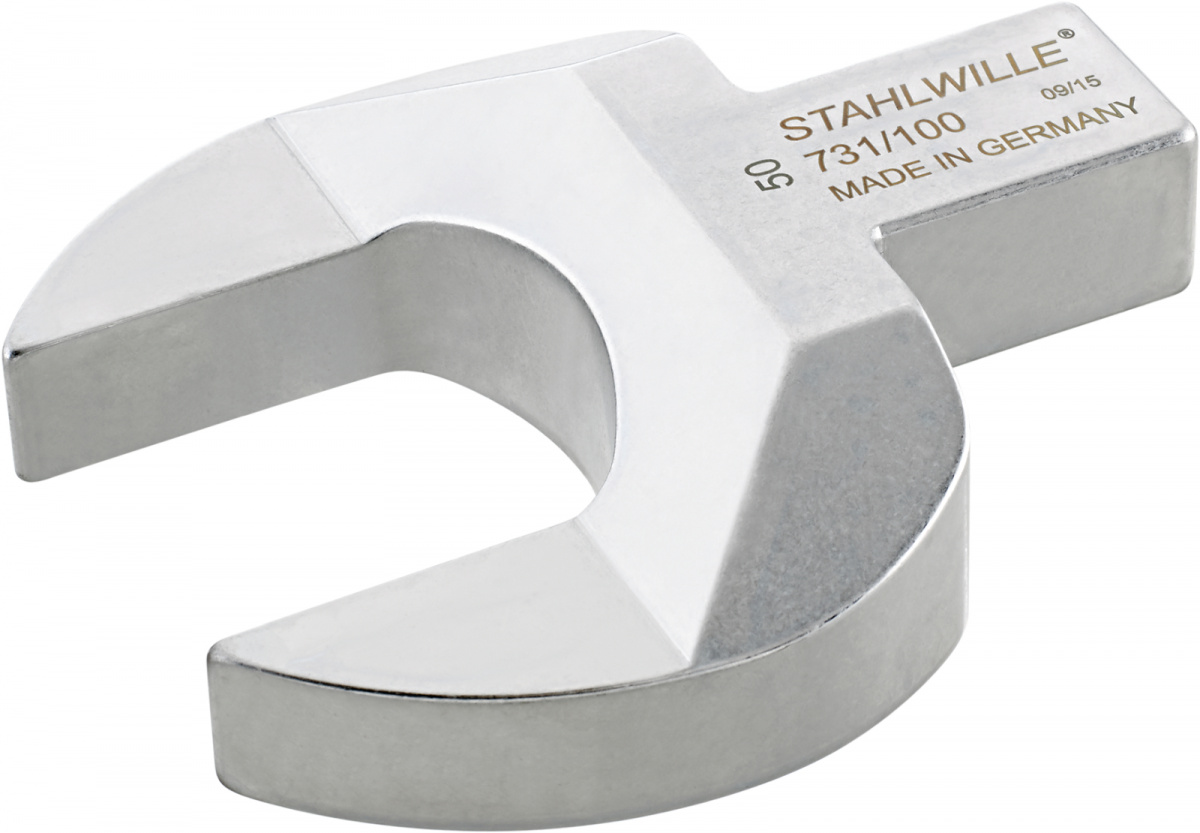

Vidlicové nástrčné nářadí
Produktové číslo: 731A/10 1/4
Výrobce: Stahlwille
Specifikace
Varianty

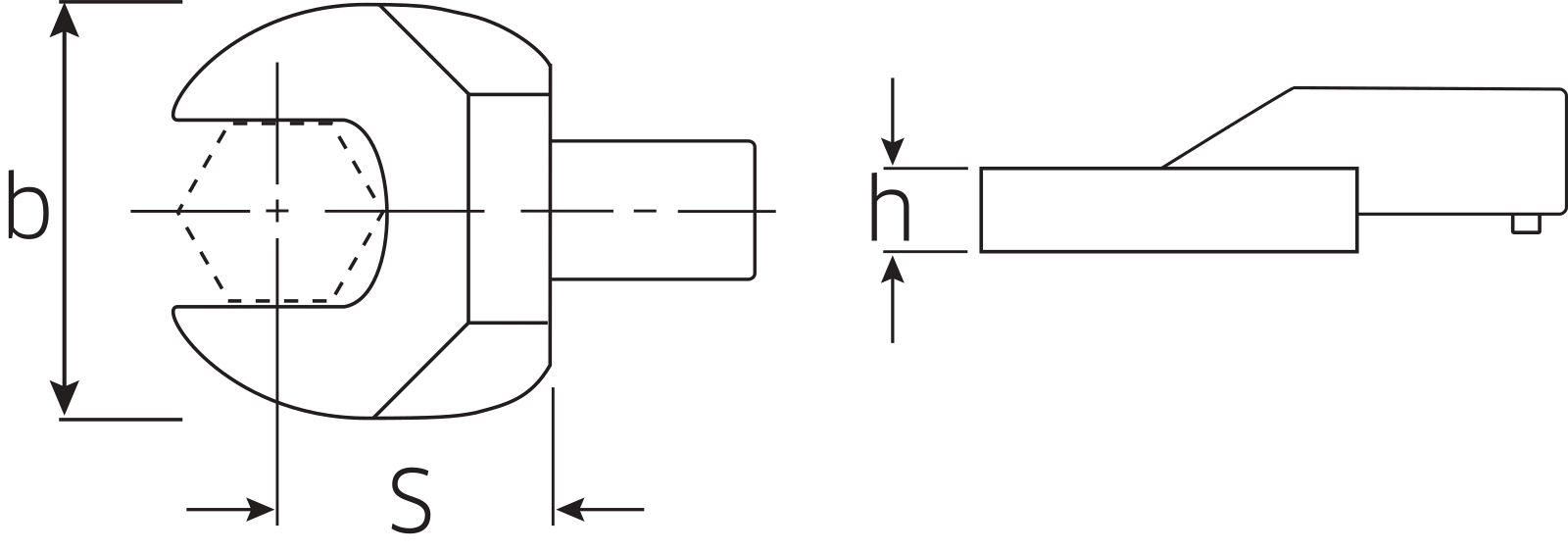

| Číslo | Skladem | A " |
J mm |
b mm |
h mm |
S mm |
R g |
|
|---|---|---|---|---|---|---|---|---|
| 731A/10 1/4 | 0 | 1/4 | [; | 22 | 5 | 17,5 | 36 |
|
| 731A/10 5/16 | 5 | 5/16 | [; | 22 | 5 | 17,5 | 53 |
|
| 731A/10 3/8 | 5 | 3/8 | [; | 26 | 5,5 | 17,5 | 38 |
|
| 731A/10 7/16 | 5 | 7/16 | [; | 26 | 5,5 | 17,5 | 37 |
|
| 731A/10 1/2 | 0 | 1/2 | [; | 30 | 7 | 17,5 | 44 |
|
| 731A/10 9/16 | 0 | 9/16 | [; | 35 | 8 | 17,5 | 49 |
|
| 731A/10 5/8 | 0 | 5/8 | [; | 38 | 8,5 | 17,5 | 64 |
|
| 731A/10 11/16 | 0 | 11/16 | [; | 42 | 9 | 20* | 76 |
|
| 731A/10 3/4 | 0 | 3/4 | [; | 42 | 9 | 20* | 73 |
|
